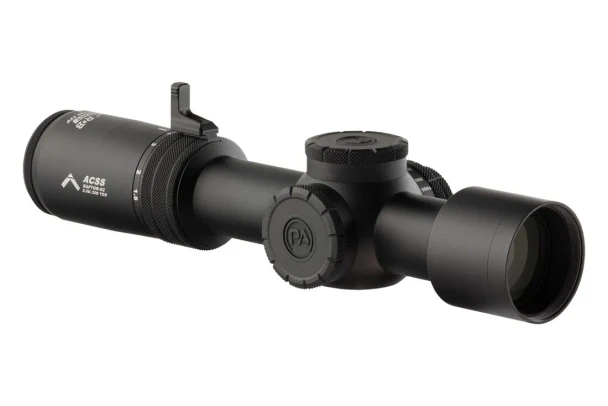

Primary Arms Compact PLxC Gen II - 1.5-12x36mm FFP Illuminated Riflescope - ACSS RAPTOR Yard 5.56 / .308 Reticle

(No reviews yet) Write a Review
SKU:
PA-PLXC-1.5-12X36F-RDB-RAPTOR-5.56Y-G2
UPC:
810178480463
MPN:
610220
Availability:
In Stock If You Can Add To Cart!
Shipping:
Calculated at Checkout
On Sale
  • Primary Arms Compact PLxC Gen II - 1.5-12x36mm FFP Illuminated Riflescope - ACSS RAPTOR Yard 5.56 / .308 Reticle, PA-PLXC-1.5-12X36F-RDB-RAPTOR-5.56Y-G2, 610220, 810178480463
  • Primary Arms Compact PLxC Gen II - 1.5-12x36mm FFP Illuminated Riflescope - ACSS RAPTOR Yard 5.56 / .308 Reticle, PA-PLXC-1.5-12X36F-RDB-RAPTOR-5.56Y-G2, 610220, 810178480463
  • Primary Arms Compact PLxC Gen II - 1.5-12x36mm FFP Illuminated Riflescope - ACSS RAPTOR Yard 5.56 / .308 Reticle, PA-PLXC-1.5-12X36F-RDB-RAPTOR-5.56Y-G2, 610220, 810178480463
  • Primary Arms Compact PLxC Gen II - 1.5-12x36mm FFP Illuminated Riflescope - ACSS RAPTOR Yard 5.56 / .308 Reticle, PA-PLXC-1.5-12X36F-RDB-RAPTOR-5.56Y-G2, 610220, 810178480463
  • Primary Arms Compact PLxC Gen II - 1.5-12x36mm FFP Illuminated Riflescope - ACSS RAPTOR Yard 5.56 / .308 Reticle, PA-PLXC-1.5-12X36F-RDB-RAPTOR-5.56Y-G2, 610220, 810178480463
MSRP: $1,999.99
Now: $1,799.99
Was: $1,999.99
— You save $200.00
Frequently bought together:

Description

Primary Arms Compact PLxC Gen II - 1.5-12x36mm FFP Illuminated Riflescope
ACSS RAPTOR Yard 5.56 / .308 Reticle

Dominate engagements from close quarters to extended distances with the flagship Primary Arms PLxC 1.5-12x36 FFP Red Dot Bright® Riflescope featuring the ACSS Raptor 5.56/.308 Yard Gen 2 reticle. Manufactured in state-of-the-art Japanese production facilities, this PLx Compact (PLxC) optic is built around premium Extra-Low Dispersion (ED) glass to deliver exceptional light transmission, flat edge-to-edge optical clarity, and true color fidelity. Combining an ultra-versatile 1.5x to 12x magnification range with a compact 9.75-inch footprint and a lightweight 19.67-ounce chassis, this scope serves as a single, compromise-free optic for versatile carbine platforms.

At the center of its capability is the First Focal Plane (FFP) ACSS Raptor 5.56/.308 Yard G2 reticle, utilizing Red Dot Bright® diffractive technology to project a true daylight-visible illuminated horseshoe and chevron aiming point. Calibrated for 5.56 NATO and .308 Win, the reticle integrates ballistic drop compensation (BDC), moving target leads, and full vertical/horizontal ranging stadia. The scope features AutoLive® motion-sensing illumination to conserve CR2032 battery life, a 30mm maintube providing 100 MOA of internal elevation travel, user-configurable Steel-On-Steel (SOS®) turrets (capped or exposed), a side parallax adjustment dialing down to 10 yards, and Primary Arms' lifetime warranty.

Features

Japanese ED Glass & Ultra-Compact PLxC Chassis:
Japanese extra-low dispersion glass minimizes chromatic aberration for superior visual clarity, packaged into a short 9.75" body weighing under 20 ounces.

Red Dot Bright® FFP ACSS Raptor 5.56/.308 Yard G2 Reticle:
First Focal Plane glass-etched reticle provides daylight-bright illumination, auto-ranging stadia, BDC holds, and moving target leads calibrated for 5.56 and .308 cartridges.

AutoLive® Motion-Sensing Illumination Tech:
Automatically powers the red illuminated reticle down when motionless and instantly reactivates it upon movement to extend CR2032 battery runtime.

Steel-On-Steel (SOS®) User-Configurable Turrets:
Rugged, highly repeatable turret system allows shooters to easily switch between low-profile capped or tactical exposed elevation turret configurations.

10-Yard to Infinity Parallax & Throw Lever Included:
Adjustable side parallax focuses down to 10 yards for close-range precision, complete with a dovetail magnification throw lever for rapid zoom adjustments.

Specifications

Manufacturer Primary Arms
Model Series / Part Number PLxC 1.5-12x36 FFP RDB / PA-PLXC-1.5-12X36F-RDB-RAPTOR-5.56Y-G2
Optic Tier / Origin PLx Series / Made in Japan (Japanese ED Glass)
Magnification Range 1.5x – 12x
Objective Lens Diameter 36 mm
Focal Plane First Focal Plane (FFP)
Reticle Pattern ACSS® Raptor 5.56/.308 Yard Gen 2 (Red Dot Bright® Illumination)
Maintube Diameter 30 mm
Adjustment Click Value 0.1 MIL Per Click
Total Windage / Elevation Travel 100 MOA Elevation / 50 MOA Windage
Field of View @ 100 Yards 77.80 ft. (1.5x) – 9.70 ft. (12x)
Eye Relief 3.30 in. (1.5x) – 3.60 in. (12x)
Exit Pupil 8.10 mm (1.5x) – 3.00 mm (12x)
Parallax Adjustment Side Focus / Adjustable from 10 Yards to Infinity
Turret Style Steel-On-Steel (SOS®) / Finger-Adjustable, Interchangeable (Capped or Exposed)
Battery Type (1) CR2032 3V Lithium Coin w/ AutoLive® Motion Sensing
Environmental Rating Waterproof, Shockproof, Fog Resistant
Overall Length 9.75 in.
Weight 19.67 oz.
Warranty Primary Arms Lifetime Warranty
