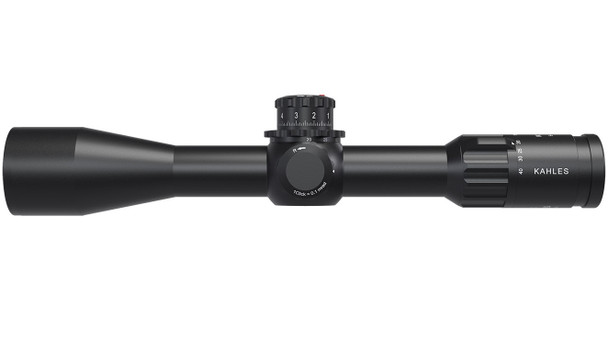

Kahles K540i REFINED - 5-40x56mm FFP Illuminated Riflescope - SKMR+ Reticle

Kahles K540i REFINED - 5-40x56mm FFP Illuminated Riflescope - SKMR+ Reticle

Setting an extraordinary new benchmark for extreme long-range target acquisition and professional precision shooting, the Kahles K540i REFINED 5-40x56 Rifle Scope delivers unmatched optical performance and downrange clarity. Built for the most demanding long-range competition scenarios and professional applications, the K540i features a true 8x zoom ratio across a powerful 5–40x magnification range. Integrated with Kahles' revolutionary VISIONFLEX optical design, this scope provides a 40% wider field of view and an exceptionally generous eyebox, allowing shooters to maintain total situational awareness and execute seamless target transitions across vast distances.

Constructed around an extra-rigid 36mm main tube and a large 56mm objective lens, the K540i maximizes light transmission and optical resolution across the entire magnification range. It incorporates Kahles' signature top-mounted central parallax wheel (adjustable from 20 meters to infinity) for effortless, ambidextrous focus adjustments directly from the firing position. Its 10 MIL per revolution counter-clockwise (CCW) turrets feature high-contrast EASYREAD indexing, a mechanical REVOLUTION INDICATOR, and an INDEXSTOP zero return system. Complete with illuminated First Focal Plane (FFP) reticles (SKMR4+, SKMR+, MSR2/Ki), shooter-configurable windage placement (left or right side), and the patented TWISTGUARD spin-protection cover, the K540i represents the pinnacle of long-range glass engineering.

Features

VISIONFLEX Optical Architecture:
Delivers a revolutionary 40% wider field of view (10.2m to 1.3m at 100m) and a forgiving eyebox for rapid target transitions and enhanced downrange clarity.

True 8x Optical Zoom Range (5-40x):
Extensive magnification range provides extreme flexibility for identifying, tracking, and engaging targets from mid-range out to extreme distances.

36mm Main Tube & 56mm Objective:
Heavy-duty 36mm aluminum main tube ensures maximum structural integrity while housing 2.9m (Elevation) / 1.2m (Windage) at 100m total adjustment travel.

Top-Mounted Central Parallax Wheel:
Patented parallax adjustment integrated into the elevation turret base allows natural, ambidextrous parallax correction from 20m to infinity without breaking cheek weld.

10 MIL CCW Turrets w/ EASYREAD & INDEXSTOP:
Counter-clockwise turrets deliver precise .1 MRAD click adjustments (100 clicks per revolution) featuring high-contrast EASYREAD markings and a positive mechanical zero stop.

TWISTGUARD Windage Protection System:
Patented outer ring rotates freely on the windage turret to prevent accidental adjustment during transport or barricade shooting without requiring tedious locking steps.

First Focal Plane (FFP) Illuminated Reticles:
Precision FFP reticle options (SKMR4+, SKMR+, MSR2/Ki) scale dynamically throughout the zoom range, powered by a side-accessible CR2032 battery.

Shooter-Specific Windage Ergonomics:
Factory-configurable with windage controls positioned on either the left or right side of the main housing to suit individual shooter ergonomics.
