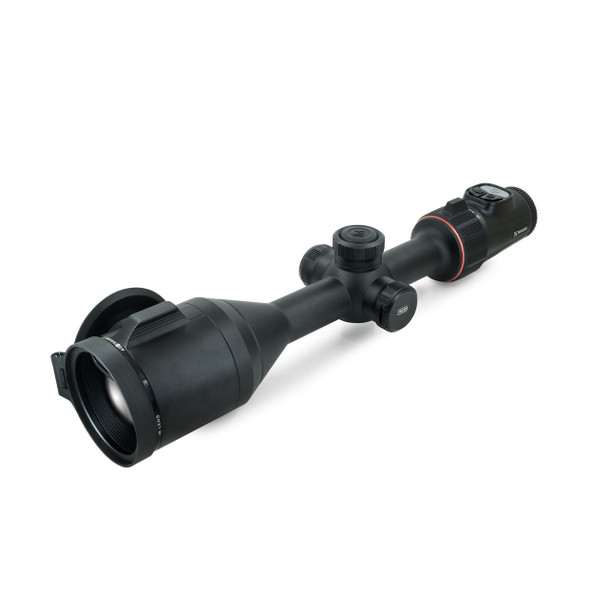

Nocpix ACE S60R Thermal Thermal Optic with Ocular Magnifier & Rangefinder - 2560×2560 AMOLED Display

Nocpix ACE S60R Thermal Thermal Optic with Ocular Magnifier & Rangefinder

The ACE is built around the idea of combining leading user-requested features in a streamlined optic that balances advanced capability with ease-of-use in the field. Designed to feel like a traditional day optic, the ACE is compatible with bolt action or semi-automatic rifles using standard 30 mm mounts and rings. The combination of an internal USB-C charging battery and a removable 18650 style rechargeable battery allows users to hot-swap batteries in the field to run indefinitely. A 1-3x ocular magnifier provides optical magnification of the 2560×2560 round AMOLED display inside the eyepiece. The Vision+ system pairs this high-resolution display with a 15 mK NETD sensor for an incredibly detailed and precise image. The 1,300-yard capable laser rangefinder on the ACE is integrated directly into the 50 mm germanium objective lens. In addition to streamlining the body design and reducing bulk, this allows for improved horizontal alignment of the infrared laser with the viewing system.

New for 2025, the ACE S60R brings the best-available thermal sensor resolution (1280x1024) to the most versatile thermal weapon sight platform on the market. With a 2x native (base) magnification, a12x digital zoom and a 1-3x Optical Magnifier, the magnification range delivers fantastic image quality at all ranges.

High-Resolution Thermal Sensor
1280×1024 resolution with ≤15 mK sensitivity for unmatched image detail.

Ballistic Calculator
Calculates bullet drop instantly using rangefinder data and cartridge profiles.

Hot-Swappable Power System
Internal USB-C charging plus removable 18650 batteries for unlimited runtime.

Picture-in-Picture Mode
Enhances target engagement without losing situational awareness.

Multiple Color Palettes
White Hot, Black Hot, Red Hot, Color, Crimson, Viridian, Violet for user preference.

Rugged Build
T-6063 aluminum housing, IP67 waterproof rating, and 5-year warranty.

Specifications

• Sensor Resolution: 1280×1024
• Pixel Size: 12 µm
• Frame Rate: 50 Hz
• Sensor Sensitivity: ≤15 mK
• Image Processing: Reality+
• Objective Lens: 60 mm f/0.9
• Native Magnification: 3x
• Digital Zoom: 12x
• Field of View: 14.7°×11.7°
• Detection Range: 3,400 yards
• Display Type: 1.03-inch AMOLED
• Display Resolution: 2560×2560
• Eye Relief: 50 mm
• Diopter Range: -5 to +5
• Onboard Recording: Video and Image
• Storage: 32 GB internal
• Wireless Connectivity: Image and video via app
• Power Supply: USB-C external, built-in battery, 2× 18650 rechargeable batteries
• Operating Time: 6–7+ hours
• Start-Up Time: <10 seconds, instant from standby
• Dimensions: 15.35" × 3.54" × 2.76"
• Weight: 45.9 oz
• Housing Material: T-6063 aluminum
• Ingress Protection: IP67
• Operating Temperature: -4°F to 122°F
• Warranty: 5 years
