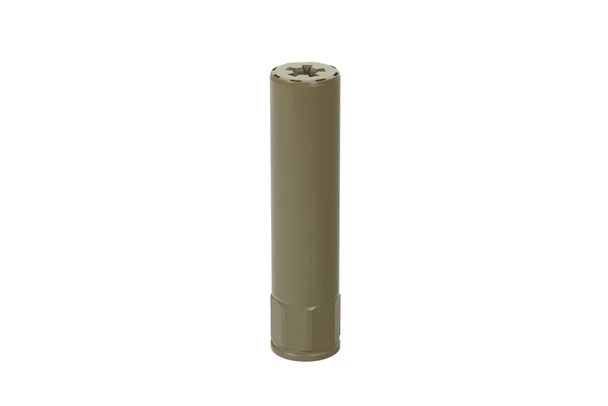

LayerX Suppression Strake 9 Titanium PCC/MP5 9mm Suppressor - Low IR FDE Finish

LayerX Suppression Strake 9 Titanium PCC/MP5 9mm Suppressor - Low IR FDE Finish

Introducing the STRAKE9 — the debut suppressor from LayerX Suppression, purpose-built for performance and precision. Developed under the guidance of a designer with over a decade of experience at one of the industry's top suppressor manufacturers, the STRAKE9 is a refined solution engineered specifically for Pistol Caliber Carbines (PCCs) and MP5 roller-delayed systems.

Crafted from DFARS Grade 5 Titanium using Direct Metal Laser Sintering (DMLS), the STRAKE9 offers a lightweight yet rugged build. Its Alphatek low infrared signature coating enhances stealth and durability, while the Bravo/HUB 1.375-24 universal mounting system ensures compatibility across platforms. With the appropriate Nielsen adapter (sold seperately), it’s also ready for pistol use.

Titanium DMLS Construction
DFARS Grade 5 Titanium offers unmatched strength-to-weight ratio and corrosion resistance.

Optimized for PCCs & MP5 Systems
Engineered for roller-delayed blowback platforms with smooth cycling and reduced blowback.

Universal HUB Threading (1.375-24)
Compatible with Bravo/HUB mounts and adaptable for pistol use with a Nielsen device.

Alphatek Coating
Low infrared signature finish enhances durability and operational stealth.

Lightweight Design
Just 8.5 oz (without mount) for minimal impact on handling and maneuverability.

Full Auto Rated
Built to withstand sustained fire with 9mm and subsonic .300 Blackout.

Specifications

• Model: STRAKE9
• Material: DFARS Grade 5 Titanium (DMLS)
• Weight: 8.5 oz (without mount)
• Length: 6.5" (without mount)
• Mounting Interface: 1.375-24 Bravo/HUB
• Coating: Alphatek (Low Infrared Signature)
• Full Auto Rating:
  • 9mm (Subsonic & Supersonic)
  • .300 Blackout (Subsonic Only)
• Sound Suppression:
  • MP5K: 117.69 dB (165gr 9mm)
  • Pistol: 113.73 dB (165gr 9mm, CANIK 5.7")
• Barrel Restrictions:
  • 9mm: Full Auto
  • .300 Blackout (Subs): Full Auto ≥ 7"
  • .300 Blackout (Supers): ≥ 9"
  • 5.56 NATO: ≥ 16"
  • 8.6 Blackout (Subs Only): ≥ 12"
  • .308 Winchester: ≥ 20"
  • 7.62x39mm: ≥ 16"
  • .357/.38 Special: ≥ 16"
